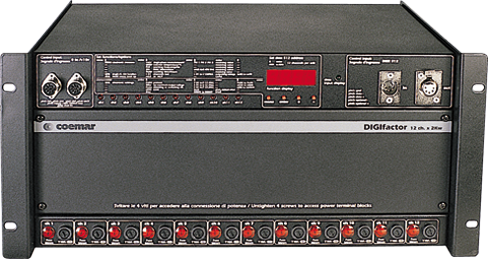

DIGIfactor 12

info request

specifications
  • Power output: 6 Ch x 2,3 Kw, 10A (DIGIfactor Club) or 12 Ch x 2,3 Kw, 10A (DIGIfactor 12 ch)
PHYSICAL SIZE
  • Length: 488 mm (19.0 in)v
  • Width: 322 mm (12.0 in)
  • Height: DIGIfactor Club: 98 mm (3.8 in) - DIGIfactor 12 ch: 220 mm (8.0 in)
  • Weight: DIGIfactor Club: 7,5 kg (16.5 lbs) - DIGIfactor 12 ch: 12 kg (26.4 lbs)
Controllers
control protocol and programming
  • USITT DMX512/1990
  • Setting and addressing: led display
electrical specifications connections
  • AC power: 200/240 V, 50/60 Hz, 100/120 V, 50/60 Hz (only DIGIfactor Club)
  • DMX data in/out: 5 pin locking XLR
