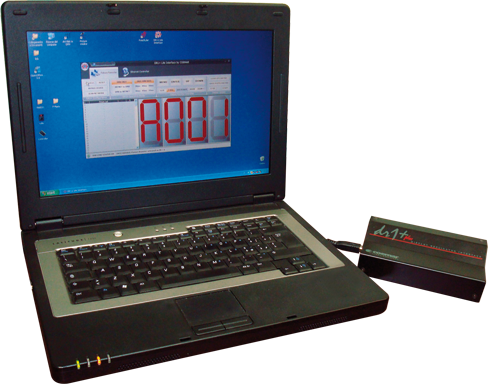

DR 1 Plus Product code: PCO9709

info request

specifications
  • Connected to a PC allows to replicate and control all the Coemar fixtures’ displays on the network via DMX 512 or Artnet.
  • Modifies projector settings in groups or individually
  • Artnet/DMX converter
  • Allows to visualize a digital display also for products with dip-switches
  • Software upgrades
  • Transparent data flow from Artnet or DMX 512 controllers.
  • Can be used as a controller with programs like Freestyler
  • Remote control until 250 different ID and projectors.
PHYSICAL SIZE
  • Length: 150 mm (5.91 in)
  • Width: 80 mm (3.15 in)
  • Height: 50 mm (1.97 in)
  • Weight: 0.2 kg (0.44 lbs)
Controls

download center

control protocol and programming
  • USITT DMX512/1990
  • Ethernet
  • Setting and addressing: virtual PC display
  • Full version software included



electrical specifications connections
  • Power supply: via USB port
  • DMX data in/out: XLR 5 M/F
  • Connection: ethernet RJ45 port
