Reflection

Reflection is a revolutionary (patents pending) static LED fixture that brings an entirely new concept to this field of lighting: a compact, interchangeable, and modular light source – just like a lamp in conventional fixtures – that creates unmatched intensity by directing light from a unique combination of LEDs onto a parabolic reflector. This design also eliminates problems such as RGB dots and multi-colored shadows which have plagued many other designs, delivering a unique, uniformly-colored light beam. By moving the light source in relation to the reflector, this beam can also be zoomed smoothly via DMX from 10° to 17° (1/2 peak angle), 16° to 25° (1/10 peak angle).

info request

specifications

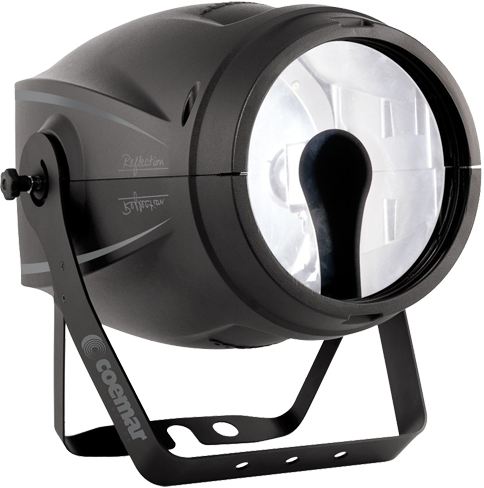

  • White 3200 K
  • Smooth dimming from 100 to 0%
  • Linear motorized zoom (Patent Pending): 10° to 17° (1/2 peak angle),
  • 16° to 25° (1/10 peak angle)
  • Electronic dimming with 2 selectable curves, simulating halogen or discharge lamp based fixtures
  • Synchronized, random or pulse electronic strobe
  • Boosted blinder effect
  • Flicker free operation with LED frequency controlled via DMX from 500 Hz to 5000 Hz
  • Modular design for easy maintenance and servicing
  • Double yoke for easy fl oor or truss mounting
  • Weatherproof rating IP 20

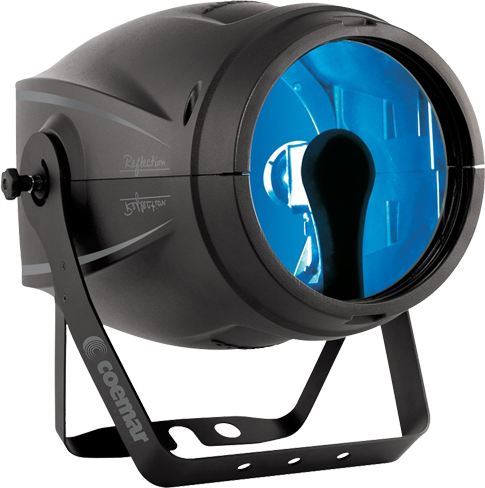

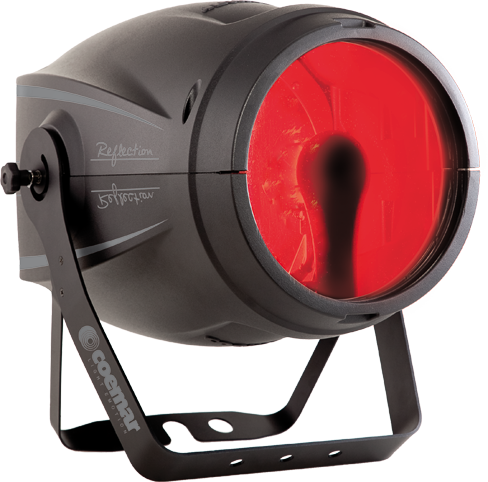

  • RGBW color mixing or CMYW modes available
  • White color temperature from 3200 to 9000 K
  • Digitally simulates leading gel filter colours through built-in libraries
  • Linear motorized zoom (Patent Pending): 10° to 17° (1/2 peak angle), 16° to 25° (1/10 peak angle)
  • Electronic dimmer, 2 different curves selectable
  • Electronic strobe, synchronized, random, pulse effect
  • Boosted blinder effect
  • Flicker free operation, LEDs frequency controlled via DMX from 600 Hz to 5000 Hz
  • Modular design for easy maintenanceand servicing
  • Aluminum body
  • Double yoke for easy floor or truss mounting
  • CE approved
  • Weatherproof rating IP 20
  • White color temperature control from 3000 to 7000 K
  • Smooth dimming from 100 to 0%
  • Linear motorized zoom (Patent Pending): 10° to 17° (1/2 peak angle),
  • 16° to 25° (1/10 peak angle)
  • Electronic dimmer, 2 different curves selectable
  • Electronic strobe, synchronized, random, pulse effect
  • Boosted blinder effect
  • Flicker free operation, LEDs frequency controlled via DMX from 600 Hz to 5000 Hz
  • Modular design for easy maintenance and servicing
  • Aluminium body
  • Double yoke for easy fl oor or truss mounting
  • CE approved
  • Weatherproof rating IP 20
light source
Modular 120 W multiple LED axial light source with parabolic reflector (Patent Pending) - Led life: 50000 hours at 70% lumen intensity maintenance
Modular 120 W multiple LEDs axial light source with parabolic reflector (Patent Pending) - Leds life: 50000 hours at 70% lumen intensity maintenance
Modular 120 W multiple LED axial light source with parabolic reflector (Patent Pending) - Led life: 50000 hours at 70% lumen intensity maintenance
PHYSICAL SIZE
  • Length: 467 mm (18.3 in)
  • Width: 319 mm (12.5 in)
  • Height: 331 mm (13 in)
  • Weight: 11.8 kg (26 lbs)
  • Length: 467 mm (18.3 in)
  • Width: 319 mm (12.5 in)
  • Height: 331 mm (13 in)
  • Weight: 11.8 kg (26 lbs)
  • Length: 467 mm (18.3 in)
  • Width: 319 mm (12.5 in)
  • Height: 331 mm (13 in)
  • Weight: 11.8 kg (26 lbs)
control protocol and programming
  • USITT DMX512/1990
  • DMX Channels: 12/8
  • Setting, addressing, testing and measurements via LCD display or remotely using Coemar DR1+ Plus
  • USITT DMX512/1990
  • DMX Channels: 12/8
  • Setting, addressing, testing and measurements via LCD display or remotely using Coemar DR1+ Plus
  • RDM ready
  • USITT DMX512/1990
  • DMX Channels: 5
  • Setting, addressing, testing and measurements via LCD display or remotely using Coemar DR1+ Plus
  • RDM ready
electrical specifications connections
  • AC power: 90-250 V, auto sensing, 50/60 Hz
  • In and Out PowerCon connectors to feed up to 16 (at 230 VAC) or 8 (90 VAC)
  • Power consumption: 0.88 A at 230V , 2.14 A at 90 V
  • DMX data in/out: 5 pin locking XLR
  • AC power: 90-250 V, auto sensing, 50/60 Hz
  • In and Out PowerCon connectors to feed up to 16 (at 230 VAC) or 8 (90 VAC)
  • Power consumption: 0.88 A at 230V , 2.14 A at 90 V
  • DMX data in/out: 5 pin locking XLR
  • AC power: 90-250 V, auto sensing, 50/60 Hz
  • In and Out PowerCon connectors to feed up to 16 (at 230 VAC) or 8 (90 VAC)
  • Power consumption: 0.88 A at 230V , 2.14 A at 90 V
  • DMX data in/out: 5 pin locking XLR
accessories
  • Frame holder (# 10001A000)

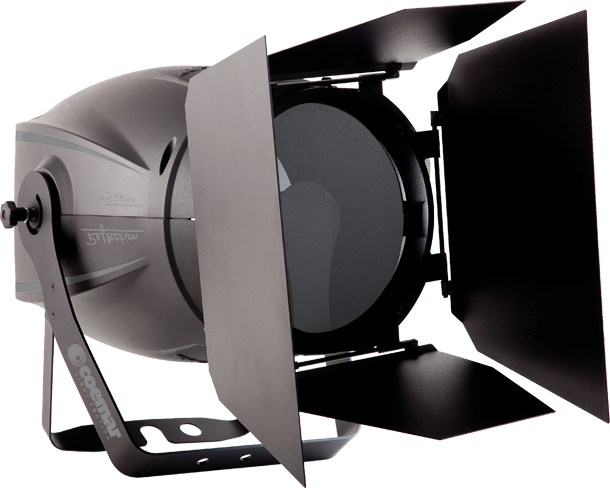

  • 4-leaf barndoor, rotating (# 0002)
  • Colour frame (# 0001)
  • Frame holder (# 10001A000)
  • 4-leaf barndoor, rotating (# 0002)
  • Colour frame (# 0001)
  • Frame holder (# 10001A000)
  • 4-leaf barndoor, rotating (# 0002)
  • Colour frame (# 0001)
