select the version

18 Led 36 Led

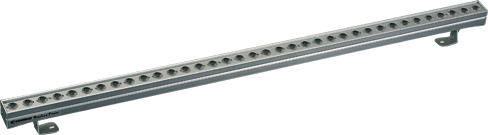

RigaLed Power

info request

specifications
  • RGB color mixing
  • Standard elliptical lens 13°x 40°
  • Silver die-cast aluminum body
  • Orientable yokes
  • IP 20 weatherproof rating
  • RGB color mixing
  • Standard elliptical lens 13°x 40°
  • Silver die-cast aluminum body
  • Orientable yokes
  • IP 20 weatherproof rating
light source
18 P4 Seoul LEDs, 6 Red, 6 Green, 6 Blue
36 P4 Seoul LEDs, 12 Red, 12 Green, 12 Blue
PHYSICAL SIZE
  • Length: 500 mm (19.7 in)
  • Width: 40 mm (1.6 in)
  • Height: 75 mm (2.9 in)
  • Weight: 0.9 kg (1.9 lbs)
  • Length: 100 mm (39.4 in)
  • Width: 40 mm (1.6 in)
  • Height: 75 mm (2.9 in)
  • Weight: 1.7 kg (3.7 lbs)
Linear
control protocol and programming
  • With RegoBox or Concept Design
  • With RegoBox or Concept Design
electrical specifications connections
  • DC constant current power supply: 350 mA
  • Power consumption RigaLed Power 18: 21.6 W
  • RJ45 connector
  • DC constant current power supply: 350 mA
  • Power consumption RigaLed Power 36: 43.2 W
  • RJ45 connector
accessories
  • 12° lens kit
  • 30° lens kit
  • 50° lens kit
  • 12° lens kit
  • 30° lens kit
  • 50° lens kit
