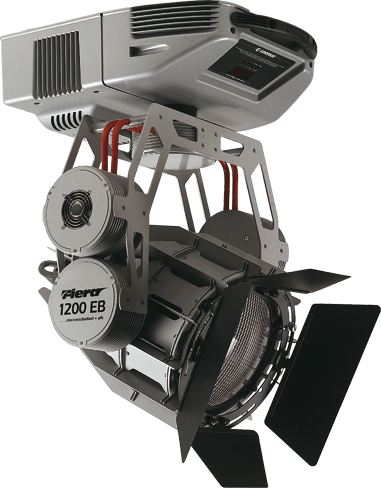

Fiera 1200

info request

specifications
  • Proportional zoom 6° – 68°
  • 3 different diffusion lenses
  • Barndoor framing system rotatable through 360°
  • Electronic strobe (EB Version)
  • Pan 530°, Tilt 210°, 16 bit
light source
Lamp Type: Philips 1200 MSR/2 - Color temperature: 7200 Kelvin - Color rendering index: 85 - Average lamp life: 800 hours - Socket: G22 - Electromagnetic ballast (MB version) - Electronic ballast with Power Factor Correction (EB version) - Variable lamp power from 800 W to 1200 W (EB version)
PHYSICAL SIZE
  • Length: 380 mm (15.0 in)
  • Width: 495 mm (19.5 in)
  • Height: 750 mm (29.5 in)
  • Weight: MB version: 38.6 kg (85 lbs) - EB version: 26.0 kg (57 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 8
  • Setting and addressing: led display or remotely
  • DMX connector: 3-5 pin XLR
electrical specifications connections
  • AC power, MB version: 200-208/230/240 V, 50/60Hz, 2m (6.6 ft) integral cable without power plug
  • AC power, EB version: 115/208/230/240 V, 50/60Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption, MB version: 7 A at 230 V
  • Power consumption, EB version: 6.8 A at 230 V
  • DMX data in/out: 3 pin locking XLR
