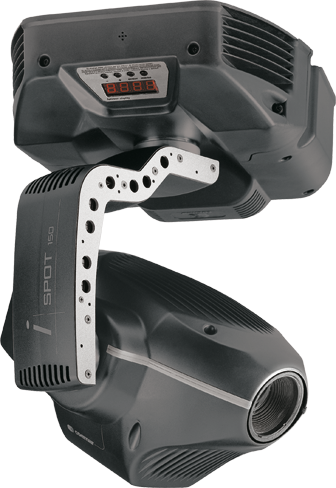

iSpot 150

info request

specifications
  • 7 colors + open
  • 1 aerial wheel, 6 rotating gobos + open
  • Focus
  • Beam angle 22°
  • Mechanical strobe, synchronized, random, pulse effect
  • Pan 538°, Tilt 252°, 16 bit
light source
Lamp Type: Philips 150 CDM-SA/T - Color temperature: 4200 Kelvin - Color rendering index: 96 - Average lamp life: 6000 hours - Socket: G12 - Electromagnetic ballast
PHYSICAL SIZE
  • Length: 335 mm (13.2 in)
  • Width: 350 mm (13.8 in)
  • Height: 470 mm (18.5 in), head straight up
  • Weight: 17.5 kg (38 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 13
  • Setting and addressing: led display or remotely
  • Internal automatic programs
electrical specifications connections
  • AC power: 100/115/208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 1.1A at 230 V, 2.2A at 115 V
  • DMX data in/out: 3 pin locking XLR
