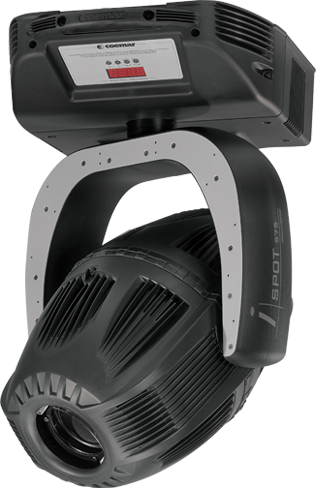

iSpot 575 EB

info request

specifications
  • 12 colors + open on 2 wheels
  • 1 aerial wheel, 6 rotating gobos + open
  • 1 break up wheel, 6 rotating gobos + open
  • 1 rotating prism
  • Focus
  • Step zoom 21°, 25°, and 27°
  • Iris
  • Dimmer
  • Mechanical strobe, electronic strobe (EB version), synchronized, random, pulse effect
  • Pan 538°, Tilt 252°, 16 bit – 3000 hours color temperature – 6000K
light source
Lamp Type: Philips 575 MSR/2 - Color temperature: 7200 Kelvin - Color rendering index: 80 - Average lamp life: 1000 hours - Socket: GX 9.5 - Electromagnetic ballast (MB version) - Electronic ballast with Power Factor Correction (EB version)
PHYSICAL SIZE
  • Length: 380 mm (15.0 in)
  • Width: 495 mm (19.5 in)
  • Height: 635 mm (25.0 in), head straight up
  • Weight: MB version: 36.6 kg (80.7 lbs) - EB version: 28.5 kg (62.8 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 22
  • Setting and addressing: led display or remotely
electrical specifications connections
  • AC power, MB version : 200-208/230/240 V or 100-115/200-208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • AC power, EB version : 115/208/230/240 V, 50/60Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption, MB version: 4 A at 230 V, 8 A at 115 V
  • Power consumption, EB version: 3.4 A at 230 V, 7.2 A at 115 V
  • DMX data in/out: 3 pin locking XLR
