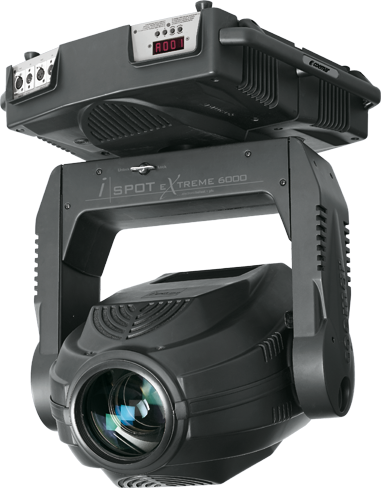

iSpot eXtreme 6000

info request

specifications
  • CMY color mixing
  • 5 colors + open
  • 5 CTO filters
  • Proportional frost
  • 1 aerial wheel, 6 rotating gobos + open
  • 1 break-up wheel, 6 rotating gobos + open
  • 2 rotating prisms (with 3D effect)
  • Focus
  • Proportional zoom 7°- 26°
  • Iris
  • Dimmer
  • Mechanical strobe, electronic strobe (zap effect), synchronized, random, pulse effect
  • Pan 530°, Tilt 270°, 16 bit
light source
Lamp Type: Philips MSR Gold 1200SA/SE - Color temperature: 6300 Kelvin - Color rendering index: 80 - Average lamp life: 500 hours - Socket: PG950 - Electronic ballast with Power Factor Correction
PHYSICAL SIZE
  • Length: 485 mm (19.1 in)
  • Width: 505 mm (19.9 in)
  • Height: 780 mm (30.7 in), head straight up
  • Weight: 38 kg (83.8 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 24
  • Setting and addressing: led display or remotely
electrical specifications connections
  • AC power: 200-208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 8 A at 230 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • RJ45 for upload and remote control
