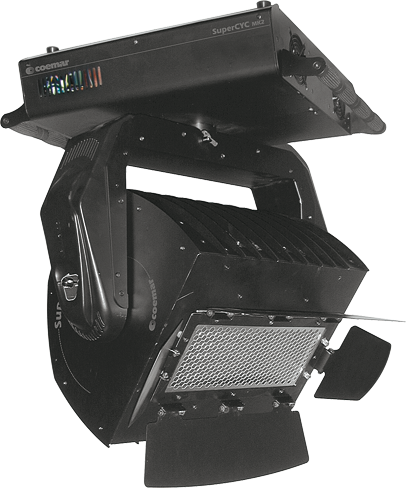

SuperCyc MK2

info request

specifications
  • CMY color mixing
  • Beam angle: 22° – 77°
  • 3 different interchangeable diffusion filters: wide, horizontal and vertical beam
  • Dimmer
  • Electronic strobe synchronized, random, pulse effect
  • 4 leaf-barndoor
  • TLT dual lamp system (Exclusive Coemar Patent)
  • Pan 430°, Tilt 230°, 16 bit
light source
Lamp Type: 2 x Philips 1200 MSR/2 x 2 - Color temperature: 5900 Kelvin - Color rendering index: 95 - Average lamp life: 800 hours - Socket: G22 - 2 electronic ballast with Power Factor Correction
PHYSICAL SIZE
  • Length: 675 mm (26.6 in)
  • Width: 705 mm (27.8 in)
  • Height: 885 mm (34.8 in)
  • Weight: 48 Kg (105.8 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • Dmx channels: 11
  • Setting and addressing: led display or remotely
electrical specifications connections
  • AC power: 200/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 15 A at 230 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
