select the version

ACL M Spot M Wash M

Infinity M Product code: PC09303 Product code: PC09301 Product code: PC09302

The Coemar ∞ Infinity “M” ACL, Spot and Wash units.
As well as offering an impressive amount of outstanding quality features never seen before in a body of this size, they have been designed following a new “multi-lamp” concept that allows the use of both 575 W and 700 W lamps, therefore introducing once again a Coemar patented revolutionary feature, which makes these fixtures ready for energy savings lamps or any kind of lamp that will be made available in the future.
All this is now possible thanks to a brand new digital ballast, with a full display diagnostic program included.

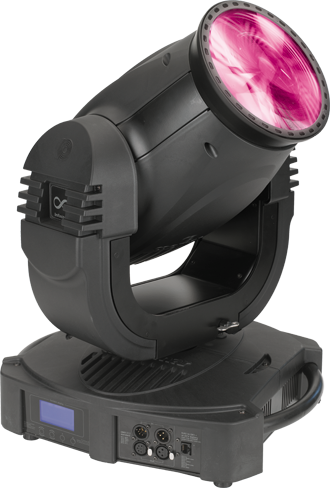

INFINITY ACL M
An automated ACL to create parallel light beams, visible even in the brightest scenes.
Equipped with colour-wheel and CMY, proportional frost, rotating aerial effects, proportional beam size control, mechanical and electronic (zap) strobe. Artnet compatible. This beam may be pointed at the audience or used as a dynamic colour changing “sky-tracker”, thus providing lighting designers with totally innovative options. Zoom range from 3° to 7°.

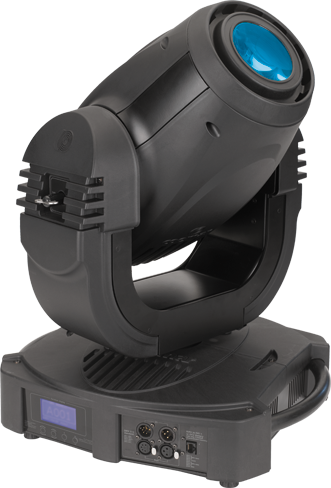

INFINITY SPOT M
The ∞ Infinity Spot M offers the most technologically advanced professional lighting tools, sized in a micro body.
Designed to be the next generation of essential moving lights, super-fast zoom mode from 9° to 42° in 0.4s, 2 prisms, rotating aerial effect, break up effects, 3D effect, film frame effect, proportional frost, superior frost, superior quality projections and dimming, CMY and color wheel.

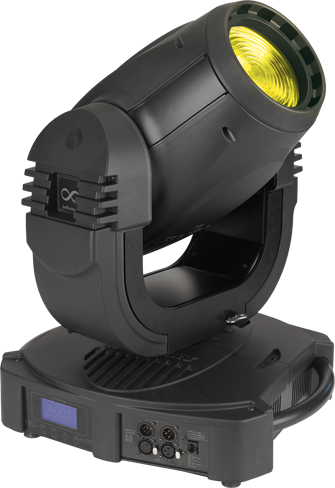

INFINITY WASH M
The ∞ Infinity Wash M is the compact lightweight 700 W washlight offered in a 250 W body.
It includes the successful patented beam effects that have become a Coemar signature with the Infinity Wash XL: moonflower effect, beam’o effect and indexable/rotating beam shaper. Zoom range from 42° down to 6°, CMY and colour wheel.

info request

specifications
  • 5 colors + open
  • CTO filter
  • UV effect
  • 7 rotating aerial effects + open
  • Film frame effect
  • Proportional variable beam angle
  • Min/Max beam angle 3°/ 7°
  • Proportional frost
  • Dimmer
  • Mechanical and electronic strobe (zap effect),
  • synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 540°, Tilt 284°, 16 bit
  • CMY color mixing
  • 5 colors + open
  • CTO filter
  • 1 aerial wheel, 7 gobos + open
  • 1 break-up wheel, 7 gobos + open
  • 2 rotating prisms
  • Film frame effect
  • Focus
  • Proportional zoom 9° – 42°
  • Proportional frost
  • Iris
  • Dimmer
  • Mechanical and electronic strobe (zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 540°, Tilt 284°, 16 bit
  • CMY color mixing
  • 5 colors + open
  • CTO filter
  • Beam shaper 360° (Patent Pending)
  • 2 Prismatic effects: moon flower, beam‘o (Patent Pending)
  • Motorized optical effect zoom: 6° to 26°
  • Motorized optical wide zoom: 8° to 42°
  • Dimmer
  • Mechanical and electronic strobe (zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
    Pan 540°, Tilt 284°, 16 bit
light source
Lamp Type: Philips MSR Gold 575/2, Philips MSR Gold 700/2, Mini FastFit, MULTI-lamp ready - Color temperature: 7400 Kelvin - Color rendering index: 71 - Average lamp life: 750 hours - Socket: PGJX28 - Digital electronic ballast with Power Factor Correction
Lamp Type: Philips MSR Gold 575/2, Philips MSR Gold 700/2, Mini FastFit, MULTI-lamp ready - Color temperature: 7400 Kelvin - Color rendering index: 71 - Average lamp life: 750 hours - Socket: PGJX28 - Digital electronic ballast with Power Factor Correction
Lamp Type: Philips MSR Gold 575/2, Philips MSR Gold 700/2, Mini FastFit, MULTI-lamp ready - Color temperature: 7400 Kelvin - Color rendering index: 71 - Average lamp life: 750 hours - Socket: PGJX28 - Digital electronic ballast with Power Factor Correction
PHYSICAL SIZE
  • Length: 459 mm (18.1 in)
  • Width: 377 mm (14.8 in)
  • Height: 612 mm (24.1 in), head straight up
  • Weight: 25 kg (55 lbs)
  • Length: 459 mm (18.1 in)
  • Width: 377 mm (14.8 in)
  • Height: 602 mm (23.7 in), head straight up
  • Weight: 27 kg (59.2 lbs)
  • Length: 459 mm (18.1 in)
  • Width: 377 mm (14.8 in)
  • Height: 602 mm (23.7 in), head straight up
  • Weight: 25 kg (55 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512A
  • Artnet, Artnet to DMX converter
  • DMX channels: 19/20
  • Setting and addressing: LCD display or remotely
  • USITT DMX512A
  • Artnet, Artnet to DMX converter
  • DMX channels: 23/24
  • Setting and addressing: LCD display or remotely
  • USITT DMX512/1990
  • Artnet, Artnet to DMX converter
  • DMX channels: 18
  • Setting and addressing: LCD display or remotely
electrical specifications connections
  • AC power: 90–260 V, auto sensing, 50/60 Hz,
  • 2m (6.6 ft) integral cable without power plug
  • Power consumption (with MSR Gold 700/2): 4.5 A at 230 V, 9.5 A at 115 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • Ethernet RJ45 port
  • AC power: 90–260 V, auto sensing, 50/60 Hz,
  • 2m (6.6 ft) integral cable without power plug
  • Power consumption (with MSR Gold 700/2): 4.5 A at 230 V, 9.5 A at 115 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • Ethernet RJ45 port
  • AC power: 90-260 V, 50/60 Hz,
  • 2 m (6.6 ft) integral cable without power plug
  • Power consumption: 4.5 A at 230 V, 9.5 A at 115 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • Ethernet RJ45 port
