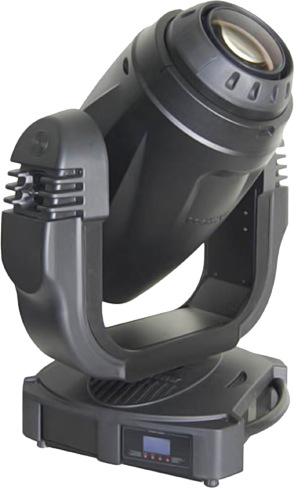

Infinity L Product code: PC10022B010

Infinity Spot L brings Coemar spot fixtures to a new level with a 1000W lamp.
Designed for the larger stage applications, but in a compact and easy-to- serve body, the Spot L features HD quality projection, dimming and CMY, a new superfast zoom mode (1:5 in 0.4s), superior morphing effects, and a new digital ballast technology (with PFC) inclusive of a full diagnostic program.
The effects engine is fully equipped with 2 gobo wheels, rotating prisms, a tight and dynamic iris, proportional frost, and CCT control.
Internal display battery and Artnet also available (optional).

info request

specifications
  • CMY color mixing
  • 5 colors + open
  •  CTO filter
  • 1 aerial wheel, 7 gobos + open
  • 1 break-up wheel, 7 gobos + open
  • 2 rotating prisms
  •  Focus
    Proportional zoom 6° – 30°
  •  Proportional frost
  • Iris
  • Dimmer
  • Mechanical strobe, electronic strobe (zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 540°, Tilt 284°, 16 bit
light source
Osram HTI 1000/PS Lok-it (mounted) - Color temperature: 5800 Kelvin - Color rendering index: 85 - Average lamp life: 750 hours - Socket: PGJ36 - Digital electronic ballast with Power Factor Correction
PHYSICAL SIZE
  • Length: 466 mm (18.4 in)
  • Width: 552 mm (21.7 in)
  • Height: 756 mm (29.8 in)
  • Weight: 35 kg (77.1 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512A
  • Artnet (optional)
  • DMX channels: 23/24
  • Setting and addressing: LCD display
electrical specifications connections
  • AC power: 90-250 V, auto sensing, 50/60 Hz, 2m (6.6 ft) PowerCon cable without power plug
  • Power consumption 5.8 A at 230 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • Ethernet RJ45 port
