Spot XL Wash XL

Infinity XL Product code: PC09137 Product code: PC09135

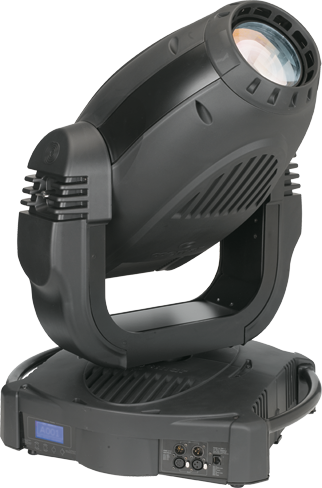

INFINITY SPOT XL
This 1500W unit accomplishes maximum exploitation of the new light source while giving off unmatched brightness and spectacular morphing effects generated by a whole set of high tech image engine.
Superior zoom, prism, proportional CTO, CMY, colour wheel, iris, mechanical strobe and electronic strobe are all inside.

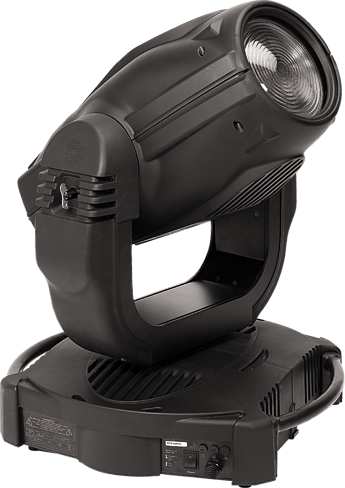

INFINITY WASH XL
A superior brightness projector 1400W with an innovative CMY-s® color mixing system, a saturation mode (Patent Pending) and a zoom range from 5° to 84°. The fixture has an effect wheel for creating texture and aerial effect with wash light (Patented). The lamp power is adjustable electronically from 700w to 1450w.
Available various lens options include a zoom kit 6° – 36° for extra brightness, a PC lens for ACL type beam and a beam shaper rotating and indexing at 360° (Patented).



info request

specifications
  • CMY color mixing system
  • 5 colors + open
  • Proportional CTO
  • 1 aerial wheel, 6 rotating gobos + open
  • 1 break-up wheel, 6 rotating gobos + open
  • 1 effect wheel, for rotating prisms and gobo effects, 6 + open
  • Focus
  • Proportional zoom 8°- 49°
  • Iris
  • Dimmer (mechanical and digital)
  • Mechanical strobe, electronic strobe (zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 530°, Tilt 270°, 16 bit
  • CMY-s® color mixing system with new saturation mode (Patent Pending)
  • 5 colors + open
  • 1 multicolor effect filter
  • Proportional CTO filter
  • 2 prismatic effects: moon flower, beam’o (Patent Pending)
  • Beamshaper 360° (Patent Pending)
  • Proportional zoom 5° – 84°
  • Dimmer
  • Mechanical and electronic strobe (zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 538°, Tilt 252°, 16 bit
light source
Lamp Type: Philips MSR Gold 1500 Fast Fit - Color temperature: 6000 Kelvin - Color rendering index: 83 - Average lamp life: 750 hours - Socket: PGJX50 - Electronic ballast with Power Factor Correction
Lamp Type: Philips MSR Gold 1200 Fast Fit - Color temperature: 6300 Kelvin - Color rendering index: >80 - Average lamp life: 750 hours - Socket: PGJX50 - Electronic ballast with Power Factor Correction Electronically adjustable lamp power (700 W to 1450 W), via DMX
PHYSICAL SIZE
  • Length: 450 mm (17.7 in)
  • Width: 505 mm (19.9 in)
  • Height: 880 mm (30.7 in), head straight up
  • Weight: 51 kg (112.4 lbs)
  • Length: 450 mm (17.7 in)
  • Width: 450 mm (17.7 in)
  • Height: 750 mm (29.5 in), head straight up
  • Weight: 45 kg (99.2 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • Artnet, Artnet to DMX converter
  • DMX channels: 28/31
  • Setting and addressing: LCD display or remotely
  • USITT DMX512/1990
  • DMX channels: 22
  • Setting and addressing: LCD display or remotely
electrical specifications connections
  • AC power: 190 – 250 V, auto-sensing, 50/60 Hz, 2 m (6.6 ft) integral cable without power plug
  • Power consumption: 8 A at 230 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
  • AC power: 200-208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 8 A at 230 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
