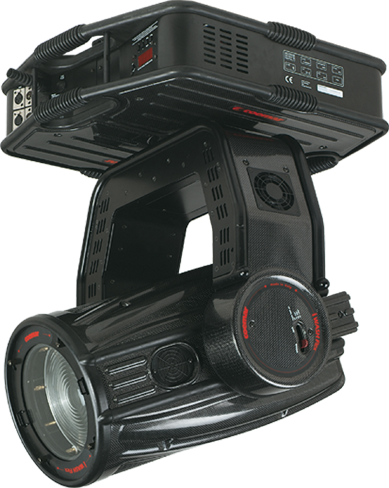

iWash Flex

iWash Flex is ideal for lighting the grandest of venues. Its power can readily be appreciated in applications where traditional moving head projectors simply have insufficient power to do the job properly. With variable luminous output of between 800W and 2000W, the iWash Flex produces infinite colors. The beam angle is adjustable via proportional zooming and the patented system of internal 4 leaf barndoors. Add to this electronic “zap” strobing, electronic dimming and interchangeable lenses and you have sampled only some of features this luminaire has to offer.

info request

specifications
  • Best Color™ (Exclusive Coemar Patent): colors dynamically determine the output of the lamp, thus allowing an optimal level of light output to be maintained
  • CMY color mixing
  • 8 colors + open on 2 wheels
  • Proportional CTO filter
  • Barndoor framing system (Exclusive Coemar Patent): four internal independently variable axial blades with proportional rotation of the assembly through 45°
  • Proportional Zoom 11° – 42°
  • Dimmer
  • Mechanical and electronic strobe (Zap effect), synchronized, random, pulse effect
  • Modular design for easy maintenance and servicing
  • Pan 500°, Tilt 252°, 16 bit
light source
Lamp Type: Philips MSR 2000 SA - Color temperature: 6000 Kelvin - Color rendering index: >80 - Average lamp life: 750 hours - Socket: GY 22 - Electronic ballast with Power Factor Correction - Electronically adjustable lamp power (800 W to 2000 W), via DMX
PHYSICAL SIZE
  • Length: 545 mm (21.5 in)
  • Width: 595 mm (23.4 in)
  • Height: 820 mm (32.2 in), head straight up
  • Weight: 49 kg (109 lbs)

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 22
  • Setting and addressing: LCD display or remotely
electrical specifications connections
  • AC power: 190-245 V, auto-sensing, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 5.5-11.3 A at 240 V
  • DMX data in/out: 3 pin and 5 pin locking XLR
accessories
  • Matrioshka, outdoor dome (#9126)
  • PC lens kit 5.5° (#KIT89)
