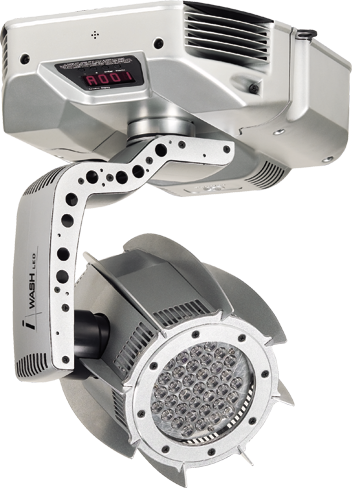

iWash Led

This energy-saving, moving yoke projector provides illumination via 37 high-efficiency leds offering high luminous output as well as infinite RGB color mixing. This unique fixture is suitable for a range of specialist and conventional applications. The unit features an extremely long led life (approx. 10 years in continuous operation), attractive design, and bi-directional communication via the peripheral DR1 device, which also allows operating parameters to be altered remotely. Flicker-free operation makes it ideal for on-camera use in television studios.

info request

  • RGB + White color system
  • Standard lens 12°
  • Electronic dimmer
  • Electronic strobe, synchronized, random, pulse effect
  • Pan 538°, Tilt 230°, 16 bit
  • Flicker-free
light source
37 Luxeon LEDs, 1.2 W each, 12 Red, 12 Green, 12 Blue, 1 White
  • Length: 335 mm (13.20 in)
  • Width: 350 mm (13.8 in)
  • Height: 470 mm (18.5 in), head straight up
  • Weight: 11.2 Kg (25 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 12
  • Setting and addressing: led display or remotely
electrical specifications connections
  • AC power: 100/115/208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 0.6 A at 230V, 1.2 A at 115V
  • DMX data in/out: 3 pin locking XLR
  • 30° lens kit (#KIT102)
