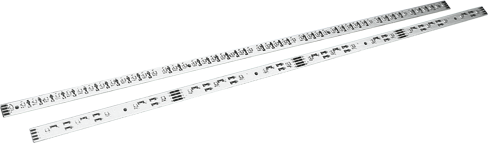

Stick

LineaLed

info request

specifications
  • RGB color mixing or single color
  • Max 100 LEDs per meter
  • LEDs viewing angle 120°
  • IP 20 weatherproof rating
  • RGB color mixing or single color
  • Max 100 LEDs per meter
  • LEDs viewing angle 120°
  • IP 20 weatherproof rating
light source
LEDs in single color (white 3200 K, 4700 K or 6500 K, green, blue, red, orange) or multicolor (Red, Green, and Blue)
LEDs in single color (white 3200 K, 4700 K or 6500 K, green, blue, red, orange) or multicolor (Red, Green, and Blue)
PHYSICAL SIZE
  • Length: 505 mm (19.9 in)
  • Width: 12 mm (0.5 in)
  • Height: 3.5 mm (0.1 in)
  • Weight:
  • Length: 505 mm (19.9 in)
  • Width: 12 mm (0.5 in)
  • Height: 3.5 mm (0.1 in)
  • Weight:
Linear

download center

control protocol and programming
  • With Regoled
  • With Regoled
electrical specifications connections
  • DC power: 24 V, quick connectors (linealed stick)
  • Power consumption:
    • 0.0056 A (white, green and blue) at 24 V, 0.1344 W each
    • 0.01 A (red and orange) at 24 V, 0.24 W each
    • 0.016 A (RGB) at 24 V, 0.384 W each
  • DC power: 24 V, quick connectors (linealed stick)
  • Power consumption:
    • 0.0056 A (white, green and blue) at 24 V, 0.1344 W each
    • 0.01 A (red and orange) at 24 V, 0.24 W each
    • 0.016 A (RGB) at 24 V, 0.384 W each
accessories
  • Connecting junction (# CON41)
  • Connection cable 0.5 m (# CV11)
  • Connection cable 1 m (# CV12)
  • Connection cable 5 m (# CV13)
  • Connecting junction (# CON41)
  • Connection cable 0.5 m (# CV11)
  • Connection cable 1 m (# CV12)
  • Connection cable 5 m (# CV13)
