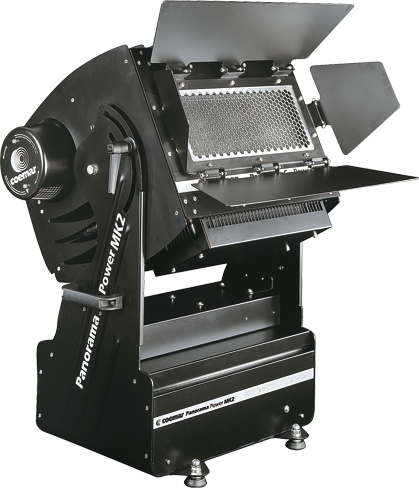

Panorama Power MK2

info request

specifications
  • CMY color mixing
  • Beam angle: 17° – 134°
  • 3 different interchangeable diffusion filters: wide, horizontal and vertical beam
  • 4 leaf-barndoor
  • Dimmer
  • TLT dual lamp system (Exclusive Coemar Patent)
  • IP 44 weatherproof rating
light source
Lamp Type: 2 x Philips 575 MSR/2 - Color temperature: 7200 Kelvin - Color rendering index: 80 - Average lamp life: 1000 hours - Socket: GX 9.5 - 2 electromagnetic ballast
PHYSICAL SIZE
  • Length: 430 mm (16.93 in)
  • Width: 540 mm (21.26 in)
  • Height: 760 mm (29.92 in)
  • Weight: 47.5 Kg (103.0 lbs)

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 6
  • Setting and addressing: LEDs display or remotely
  • 4 Internal automatic programs
electrical specifications connections
  • AC power: 208/230/240 V, 50/60 Hz, 2 m (6.6 ft) integral cable without power plug
  • Power consumption: 7 A at 230 V
  • DMX data in/out: 3 pin locking XLR
accessories
  • 360° rotating support for suspension (# 9821)
  • Maxi diffuser (# 9822)
  • Narrow beam lens (# KIT43)
