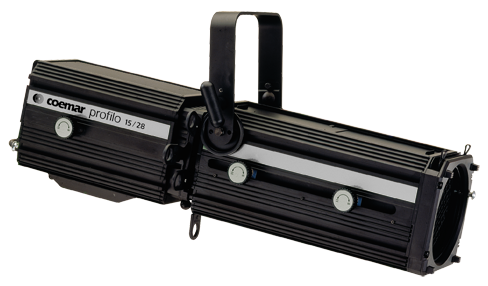

Profilo
info request
specifications
- Proportional zoom: 15° – 28° (Profilo 15/28) – 22° – 40° (Profilo 22/40)
- Color frame
light source
Lamp Type: halogen lamp 1000/1200 W, 230/240 V - Socket: GX 9.5
PHYSICAL SIZE
- Length: Profilo 15/28: 835 mm (32.9 in) - Profilo 22/40: 740 mm (29.1 in)
- Width: 285 mm (11.2 in)
- Height: 210 mm (8.3 in) - with bracket: 420 mm (16.5 in)
- Weight: Profilo 15/28: 12.7 kg (28.0 lbs) - Profilo 22/40: 11.9 Kg (26.2 lbs)
Classical Theatrical
download center
- Iris diaphram (#060)
- Gobo holder (#065)
- Lamp 1000 W, 230 V (#105018/1)
- Lamp 1200 W 230V (#105091/2)
brochures instructions manuals photometric data
drawing size pdf exploded diagrams
accessories
