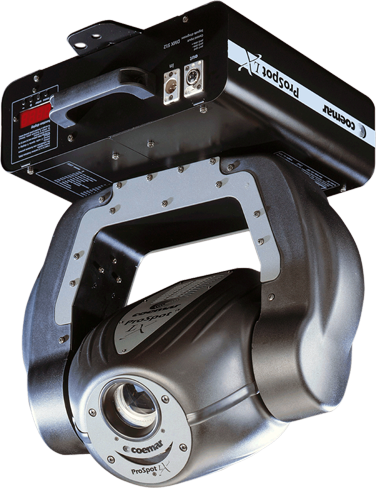

ProSpot 250 LX

info request

specifications
  • 11 colors + open
  • 1 aerial wheel, 6 rotating gobos + open
  • 1 rotating prism
  • Focus
  • Beam angle 15°
  • Dimmer
  • Mechanical strobe, synchronized, random, pulse effect
  • Pan 530°, Tilt 284°, 16 bit



light source
Lamp Type: Philips MSD 250W/2 - Color temperature: 8500 Kelvin - Color rendering index: 70 - Average lamp life: 2000 hours - Socket: GY 9.5 - Electromagnetic ballast
PHYSICAL SIZE
  • Length: 350 mm (13.8 in)
  • Width: 377 mm (14.8 in)
  • Height: 535 mm (21.1 in), head straight up
  • Weight: 23.5 kg (51.0 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 16
  • Setting and addressing: led display or remotely



electrical specifications connections
  • AC power: 115/208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 2 A at 230 V, 4.2 A at 115 V
  • DMX data in/out: 3 pin locking XLR



accessories
  • Objective lens 18° (#OB06)
  • Objective lens 12°(#OB07)
  • Camlock plate (#9111)
