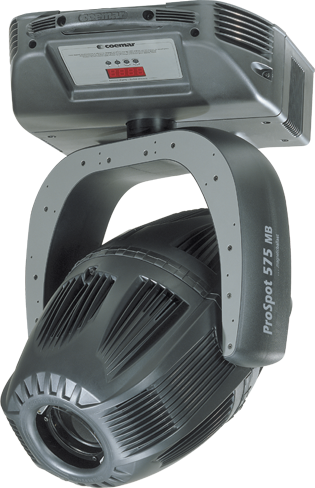

ProSpot 575 MB

info request

specifications
  • 6 colors + open
  • 1 aerial wheel, 6 rotating gobos + open
  • 1 break-up wheel, 6 gobos + open
  • 1 rotating prism
  • Focus
  • Beam angle 22.5°
  • Iris
  • Dimmer
  • Mechanical strobe, synchronized, random, pulse effect
  • Pan 538°, Tilt 252°, 16 bit
light source
Lamp Type: Philips 575 MSR/2 - Color temperature: 7200 Kelvin - Color rendering index: 80 - Average lamp life: 1000 hours - Socket: GX 9.5 - Electromagnetic ballast
PHYSICAL SIZE
  • Length: 380 mm (15.0 in)
  • Width: 495 mm (19.5 in)
  • Height: 635 mm (25.0 in), head straight up
  • Weight: 37 kg (81.6 lbs)
Moving Heads

download center

control protocol and programming
  • USITT DMX512/1990
  • DMX channels: 22
  • Setting and addressing: led display or remotely
electrical specifications connections
  • AC power: 200-208/230/240 V or 100-115/200-208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
  • Power consumption: 4 A at 230 V
  • DMX data in/out: 3 pin locking XLR
