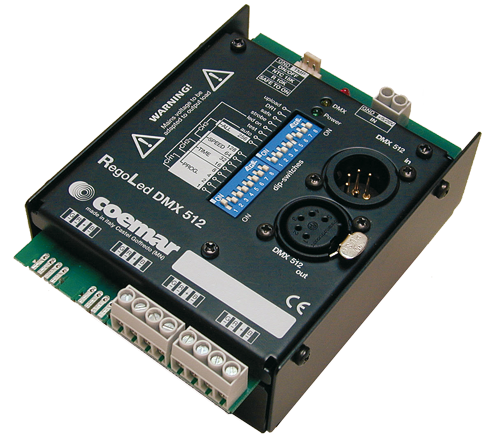

RegoLed DMX 512
info request
specifications
- DC voltage Power Supply
- Directly controlled with DMX signal
- 1200 LEDs white, green or blue controlled
- 680 LEDs red or orange controlled
- 420 LEDs multicolor (RGB) controlled
- 3 different electrical channels, individually controlled
- Electronic dimmer
- Electronic strobe, synchronized, random, pulse effect
- IP 20 weatherproof rating
PHYSICAL SIZE
- Length: 98 mm (3.9 in)
- Width: 120 mm (4.7 in)
- Height: 50 mm (2.0 in)
- Weight: 0.35 kg (0.8 lbs)
Controllers
download center
- USITT DMX 512/1990
- DMX channels: 6
- Setting and addressing: binary dip switch or remotely
- 4 Internal automatic programs
- DC power: 9-28.5 V
- Max output current: 7 A
- DMX data in/out: 5 pin locking XLR
- Switching Power Supply 100 VA, 24 V DC (# E016)
- Switching Power Supply 200 VA, 24 V DC (# E017/1)
- Switching Power Supply 500 VA, 24 V DC (# E018)
