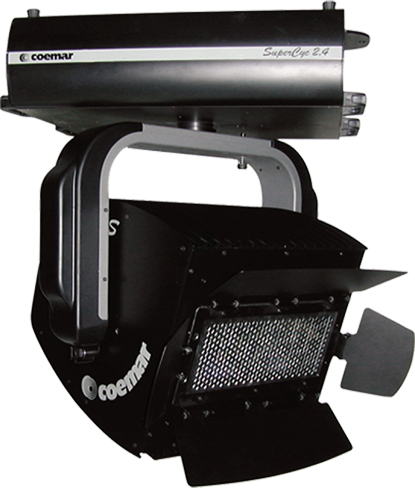

SuperCyc 2.4
info request
specifications
- Manufactured from aluminium and stainless steel sheet, black paint
- 2 G22 high voltage ceramic lamp bases, with precision silver plated contacts
- Forced convection ventilation and heat dissipation system
- IP20 protection rating • base and yoke locks for ease of transportation
- 4-leaf barndoor
- Easy mounting in any position
- Rectangular base for mounting on universal truss
- Meets CE norms
light source
Lamp Type Philips 1200 MSD x 2 - base: G 22 - power: 1200W - Luminous flux: 92.000 lumen - indicative lamp life: 2000 hours - colour temperature: 6000K or Lamp Type Philips 1200 MSR x 2 - base: G 22 - power: 1200W - luminous flux: 110.000 lumen - indicative lamp life: 800 hours - colour temperature: 5900K
PHYSICAL SIZE
- Length: 705mm (27,76 in)
- Width: 680mm (26,77 in)
- Height: 885mm (34,84 in)
- Weight: 52 kg (114 lbs)
Moving Heads
download center
- Control by DMX 512 standard signal via 3 and 5 pin XLR
- Thermal magnetic protection
- Micro-step driven stepper motors
- Led display
- Over temperature protection
- 4 menu/function buttons for selecting the operation mode
- Ultra-flexible torsion cables conductors
- On/Off of the two lamps independently controllable via DMX
- Mains supply: 208/230/240V, 50/60Hz
- DMX signal reception indicator and characteristic feature display
- Addressing via multifunction display panel
- Ventilation regulated by an internal timer (activated depending on lamp status)
- Built-in test facility features
- Display can be inverted
- Reversal of pan and tilt movement
- Micro-step driven stepper motors
- Lamp on/off ability without pan/tilt movement
- Electronic log to indicate lamp and fixture working life
control protocol and programming
electrical specifications connections
