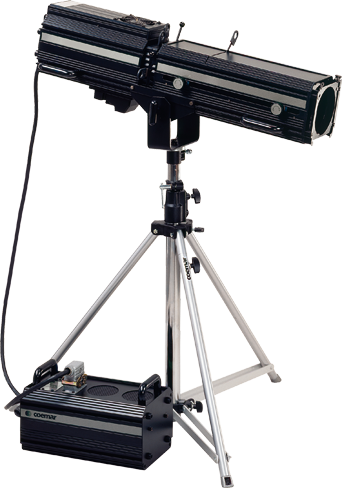

Testa 1200 W is a medium-long range followspot in die-cast and extruded aluminum, for use in TV studios, theatres, concert halls and tours.
It is supplied complete with dimmer/black-out, shutter blades, iris diaphragm, separate ballast and mains cable.
Color changer and tripod stand are available as accessories.
Testa Product code: PC05053/L
info request
specifications
- 4 adjustable shutter blades
- Proportional zoom 6° – 11,5°
- Dimmer
- Iris
light source
Limp Type: Philips 1200 MSR - Color temperature: 5900 Kelvin - Color rendering index: 80 - Average lamp life: 800 hours - Socket: G 22 - Ballast: electromagnetic, external
PHYSICAL SIZE
- Length: 1040 mm (40.9 in)
- Width: 355 mm (13,9 in)
- Height: 425 mm (16.7 in)
- Weight: 18.2 Kg (40.1 lbs) (projector) - 17.0 Kg (37.5 lbs) (ballast)
Classical Theatrical
download center
- AC power: 200/208-230-240 V, 50/60 Hz (110 V on request), 2m (6.6 ft) integral cable without power plug
- Power consumption: 7.2 A at 230 V
- Color changer, 5 filters (# 5056)
- Color frame (# 062)
- Gobo holder (# 065)
brochures instructions manuals photometric data
drawing size pdf exploded diagrams electrical diagrams certificates
electrical specifications connections
accessories
