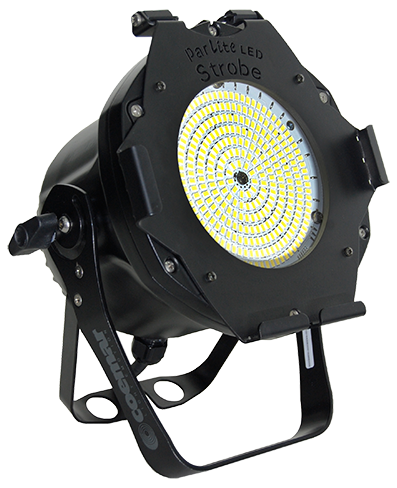

The perfect lightweight strobe ParLite Led with an aluminum body for a long lasting light source and with 7 LED rings individually controlled in which you can use strobe and wash mode. It can achieve a 120° beam angle.
Perfect for broadcast segment thanks to the low noise fan. Cool design for hi-end installation thanks to its lightweight of 4.5 Kg.
ParLite Led Strobe Product code: PC10016A196
info request
specifications
- Fixed white CCT: 6.500 K
- 120° beam angle
- 7 LED rings individually controlled
- ‘Ring’ strobe effects
- Strobe and wash modes (automatic led intensity adjustment)
- Synchronized, random or pulse electronic strobe
- Electronic dimmer (2 curves selectable)
- Guaranteed flicker-free operation with LEDs frequency controlled via DMX from 600 to 5.000 Hz
- Double yoke for easy ground standing or truss hanging
- IP rating: 20 or 65 (weatherproof)
- CE approved
light source
308 Daylight LEDs (White 6.500 K). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
- Length: 211 mm (8.3 in)
- Width: 182 mm (7.1 in)
- Height: 267 mm (10.5 in)
- Weight: 4.5 kg (9.9 lbs)
Effects
download center
- USITT DMX512A
- DMX channels: 13 / 6 / 3
- Setting, addressing, testing and measurements via LEDs display
- RDM (Remote Device Management)
- AC power: 90-250 V, auto-sensing, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
- Max power consumption: 97 W
- Power consumption: 0.7 A at 230 V, 1.5 A at 115 V – cosφ 0.6
- DMX data in/out: 5 pin locking XLR
- Support color frame holder
- Frame for internal frost filter
- Frame for external frost filter
- 4-leaf barndoor
drawing size pdf drawing size dwg exploded diagrams
control protocol and programming
electrical specifications connections
accessories
