Tungsten Daylight

ReLite Led Product code: F032C040A (CRI 90) | F032A040A (CRI avg. 97) Product code: F032D040A (CRI 90) | F032B040A (CRI avg. 97)

The quickest and most cost-effective way to switch your studio or theatre from halogen to LED.

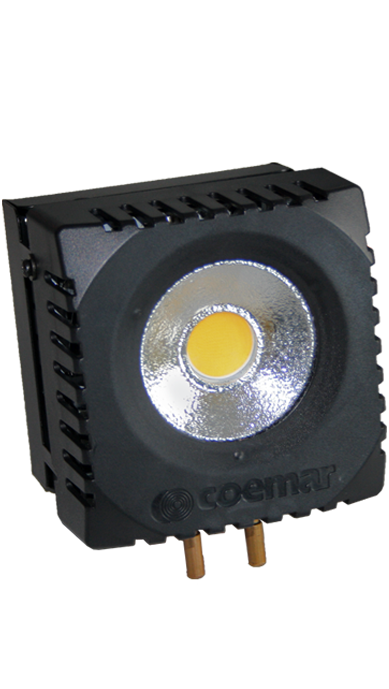

The ReLite is a LED based lamp designed to retrofit 1K and 2K traditional incandescent fixtures.

Tungsten and Daylight versions available (CRI 90 or CRI avg. 97 – high CRI version for Studio applications).

  • Full-range dimming on your existing AC dimmers
  • Linear dimming from 1% to 100%: the stability of the fixture is guaranteed starting from 30/35 % of the dimmer channel (depending on the installation conditions)
  • Flicker-free operation ideal for TV/Broadcast installations
  • Huge power savings (reduce your power consumption by over 90%) with almost no heat generated
  • Long life LED lamp (no relamping issues and no maintenance costs)
  • Thermal protection
  • Audio noise: dbA 14

info request

specifications
  • Fixed white CCT: 3.200 K
  • Linear dimming from 1% to 100%: the stability of the fixture is guaranteed starting from 30/35 % of the dimmer channel (depending on the installation conditions)
  • Flicker-free operation (dimming with constant current)
  • Audio noise: dbA 14
  • Thermal protection
  • IP rating: 20
  • CE approved
  • Instantly upgrade an existing Arri, ADB or De Sisti (and more)
  • Fixed white CCT: 5.600 K
  • Linear dimming from 1% to 100%: the stability of the fixture is guaranteed starting from 30/35 % of the dimmer channel (depending on the installation conditions)
  • Flicker-free operation (dimming with constant current)
  • Audio noise: dbA 14
  • Thermal protection
  • IP rating: 20
  • CE approved
  • Instantly upgrade an existing Arri, ADB or De Sisti (and more)
light source
Tungsten COB LED (CRI 90 or CRI avg. 97). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
Daylight COB LED (CRI 90 or CRI avg. 97). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
  • Length: 91 mm (3.58 in)
  • Width: 107 mm (4.21 in)
  • Height: 110 mm (4.33 in) - with connectors: 134 mm (5.28 in)
  • Weight: 0.8 Kg (1.7 lbs)
  • Length: 91 mm (3.58 in)
  • Width: 107 mm (4.21 in)
  • Height: 110 mm (4.33 in) - with connectors: 134 mm (5.28 in)
  • Weight: 0.8 Kg (1.7 lbs)
Retrofit Lamp

download center

electrical specifications connections
  • Power supply: 90-240 V, auto-sensing, 50/60 Hz
  • Max power consumption: 160 W
  • Power consumption: 0.7 A at 230 V, 1.48 A at 110 V – cosφ 0.98
  • Pin Connectors: G22 – G38 adaptor
  • Power supply: 90-240 V, auto-sensing, 50/60 Hz
  • Max power consumption: 160 W
  • Power consumption: 0.7 A at 230 V, 1.48 A at 110 V – cosφ 0.98
  • Pin Connectors: G22 – G38 adaptor
accessories
  • G22 adaptor (2.000 W)
  • G38 adaptor
  • G22 adaptor (2.000 W)
  • G38 adaptor
